Compact 3000W Integrated Servo Motor

Built-in controller, Nano-PLC and direct AC mains supply with same capacity and length as traditional servo motors.

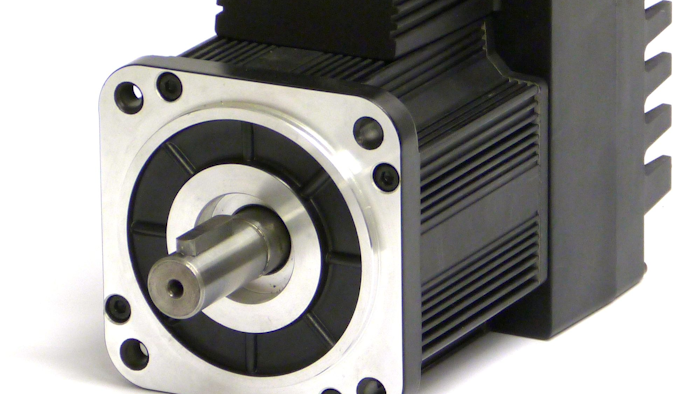

Jvl Mac1500 Front Cut
Electromate
1478997 10152055840537140 1135023406 N
Electromate

Electromate announces a new and unique integrated motor control product from JVL.

With a length of only 311.8mm for a 3000W motor with a torque of 9.55/28.6Nm at 3000 rpm, this MAC motor matches the size of traditional servo motors without built-in controllers with flange 130x130mm.

Complete servo system includes:

  • High-dynamic AC servo motor

  • Hall-sensors

  • Encoder

  • Power supply

  • Driver and positioning controller

  • Nano-PLC

Facilities incorporate various control modules, such as:

  • Bluetooth

  • WLAN

  • ZigBee,

  • EtherCAT

  • EtherNet/IP

  • CANopen

  • DeviceNet

  • Profibus

  • Profinet

  • Nano PLC

  • RS232/RS485/USB

  • Process Control

Information on the MAC motor from JVL can be viewed at https://www.electromate.com/assets/catalog-library/pdfs/jvl%20industri%20elektronik/JVL_ld0083gb.pdf
