High-Speed Direct Drive Linear Motor

Offers 5-micron resolution, zero backlash and zero cogging.

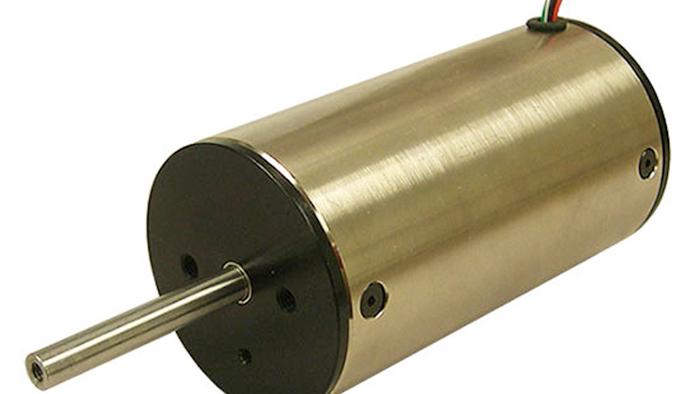

Moticont Sdlm 051 095 01 05 4x5x300
Moticont
Moticont
Moticont

Moticont has added another linear motor to its SDLM Series of high-speed direct drive linear motors.

The SDLM-051-095-01-05 is a powerful, compact linear actuator measuring just 2 inches in diameter and 3.75 inches long. It has a 1 inch stroke and features a resolution of 5 microns.

The integral, linear optical quadrature encoder is directly connect to the shaft for the greatest possible bandwidth and accuracy and is protected by the housing. This fully enclosed linear motor features a continuous force rating of 7.6 lbs. and a peak force of 24.1 lbs. at 10 percent duty cycle.

Applications Include:

  • Vibration

  • Noise cancellation

  • Photonics

  • Gimbals

  • Antenna positioning

  • Medical devices

  • Semiconductor handling

  • SMT machines

  • Assembly

  • Wafer handling

  • Optical focusing

  • Dynamic vibration absorption

  • Scanners

  • Laser beam steering

For additional information, visit the website at http://www.moticont.com.
