High-Load, Low-Profile XY Stage

Features high resolution and high repeatability.

Oes Au200 170x170 Xy Stepper Stage 4x5x300
Optimal Engineering Systems
Oes
Optimal Engineering Systems

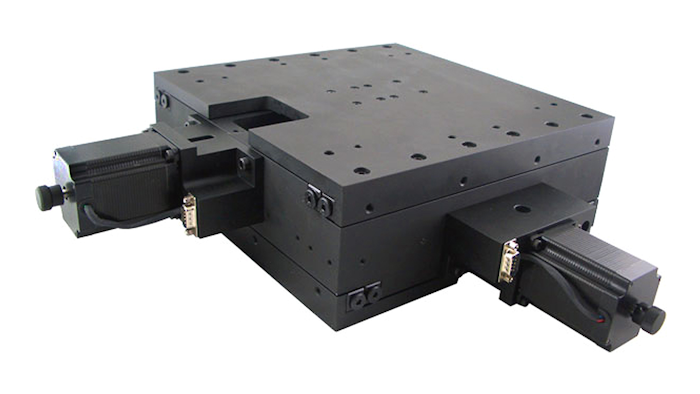

Optimal-Engineering Systems has added a new, larger high-load precision stage to its extensive line of precision XY stages.

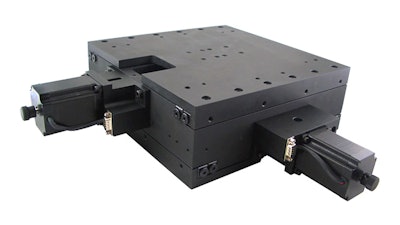

The AU200-170x170 stage measures 2.252 inches high, with a compact footprint — including the motors — of 18.032 x 18.032 inches.

  • Linear travel of the X and Y axes is 6.692 x 6.692 inches.

  • Resolution of each axis is 20 microns (non-micro-step) or 1 micron (20 micro-steps per step motor driver in use).

  • Repeatability is 2 microns, and the positional accuracy is 3 microns.

  • Four-millimeter per-turn lead screws have just 2 microns of backlash.

  • Stages have preloaded V-groove and crossed roller bearings.

For more information, visit http://www.oesincorp.com.
