Hollow Core Voice Coil Motor

Features high acceleration, precise positioning to less than one micron.

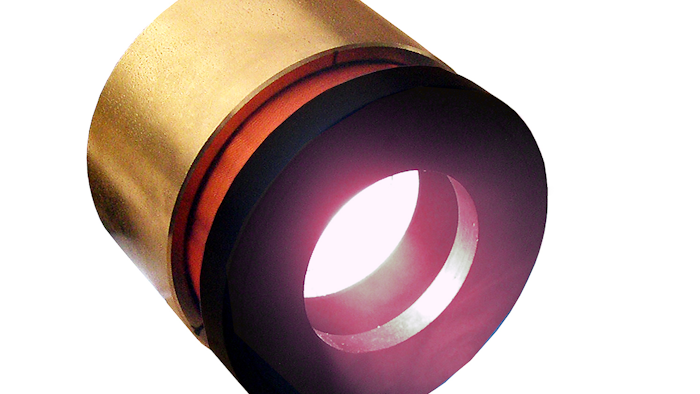

Hvcm 051 025 019 01 300x4x5 Hr
Moticont
Moticont
Moticont

Moticont’s low inertia hollow core voice coil or moving coil linear motor, the HVCM-051-025-019-01, has an open apertures of 0.750 in. to allow for optics, illumination, laser beams or cables to pass through.

Applications include positioning, medical diagnostics and testing, laser beam steering, dynamic vibration absorption, optical focusing, laser cutting and welding, scanning, assembly and wafer handling.

  • 0.50 in. stroke length, a continuous force rating of 4.8 lbs and a peak force of 15.15 lbs at a 10 percent duty cycle.
  • Measures 2 in. diameter by 1 in. housing length.
  • Two 10-32 UNF-2B by 0.25 in. deep threaded mounting holes on 1 in. centers in the housing and coil.

For more, visit http://www.moticont.com.
