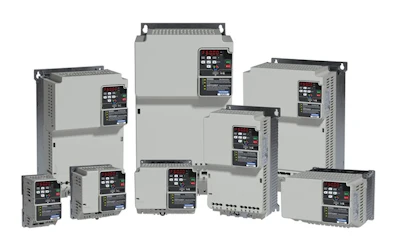

The Drives & Motion Division of Yaskawa America, Inc. (Waukegan, IL) is proud to announce the newest addition to our industrial AC drive lineup, the GA501 Industrial AC Microdrive with Embedded Ethernet!
The GA501 is engineered for modern industrial automation and easily handles any industrial application, thanks to its embedded dual-port Ethernet capability. With support for all major industrial Ethernet protocols, the GA501 eliminates the need for additional hardware, reduces installation time and simplifies system design.
The GA501 integrates seamlessly into your network via EtherNet/IP, PROFINET, Modbus TCP/IP, EtherCAT, BACnet/IP, or MECHATROLINK-4, all within a single AC drive. Reduce installation time with dual-port Ethernet connections, standard DIN rail mounting for up to 7.5 HP, and spring-tension I/O terminals. With support for all major industrial Ethernet protocols and topologies, the GA501 eliminates the need for additional hardware, reduces installation time, and simplifies system design.
The GA501 can be part of your Industrial Internet of Things (IIoT) via a variety of industrial protocols. Select from the six on-board network protocols with a simple DIP switch.
Available ratings: IP20/ Open Type enclosure
- 240 VAC single-phase: 1/6 to 5 HP
- 240 VAC three-phase: 1/6 to 30 HP
- 480 VAC three-phase: 1/2 to 40 HP
Motor operation up to 40 HP includes:
- Induction (IM)
- Permanent Magnet (PM)
- Synchronous Reluctance (SynRM)
www.yaskawa.com/products/drives/industrial-ac-drives/microdrives/ga501-drive
