Pneumatic Pinch Valve

Optimizes single-use batch production.

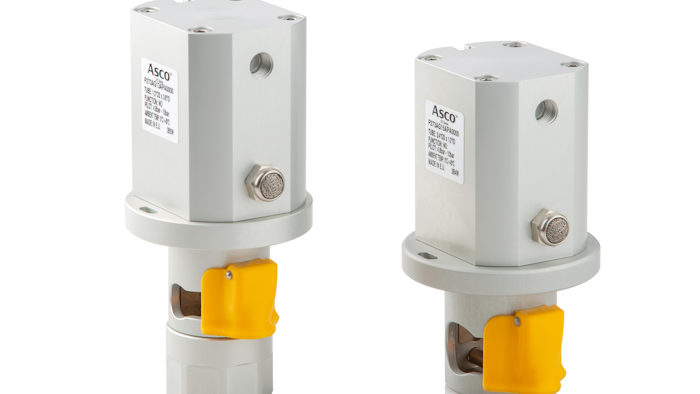

Emerson Asco 273 Pneumatic Pinch
Emerson

Emerson has released its ASCO Series 273 Pinch Valve for the life sciences market.

The new series expands Emerson’s extensive pneumatic valve offering to single-use batch applications in bioreactor and fermentation tanks, tangential flow filters (TFF), chromatography skids and other drug discovery lab applications.

The Series 273 features an innovative pinching mechanism that remains firmly in place to provide better tube retention and eliminates breakage or damage to the soft tubing. It also includes a safety guard to prevent exposure to moving parts, as well as a manual override feature that lets operators insert or remove tubing without actuating the valve during unplanned batch switching.

A pneumatically actuated pinch valve, the Series 273 makes no contact with process media, features a high lifecycle and provides a reliable pinching force over repeated use. Available in anodized aluminum and 316 stainless steel, the series is suitable for peroxide fumigation and includes a position indication option for valve on/off status feedback.

Specifications include:

  • 2-way normally open (NO) and normally closed (NC)
  • Tube outer diameter (OD): 3/8"–1"
  • Tube hardness: 55–80 Shore A
  • Media pressure: up to 6BAR (90 PSIG)
  • Air operating pressure: 4.8 to 10 BAR (70 to 145 PSIG)
  • Valve position detection: open or closed

The Series 273 targets single-use batch applications in the pharmaceutical and biopharmaceutical markets, but is also suitable for food and beverage production.

For additional information, please visit https://www.emerson.com/en-us/news/automation/1911-asco-pneumatic-pinch-valve.
