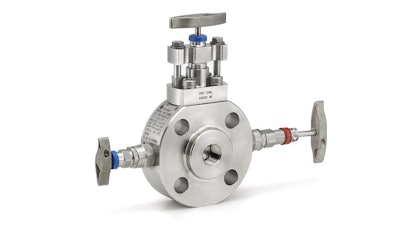

The new Ashcroft (Stratford, CT) V02 monoflange provides block and bleed capability for process or instrumentation control. The process variation adds an outside screw and yoke head for service as a primary isolation valve. Compatible with ½ to 3 inch standard ASME raised face and ring joint flange connections, this valve system easily mates to existing common flange couplings. 316L stainless steel wetted parts along with optional alternate materials allow the V02 to stand-up to a wide variety of pressure media. A maximum pressure rating of 6092 psi at 428°F (420 bar at 220°C) ensures that the Ashcroft monoflange valve assembly is ready for most severe applications.
www.ashcroft.com; 203-385-0635
