Potable Water Solenoid Valves

Suitable for use with a variety of liquids, oils and gases.

Gc Water Valves 5x7
AutomationDirect

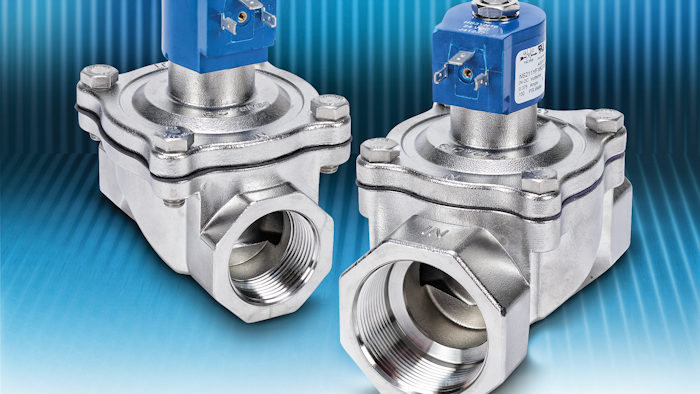

AutomationDirect’s family of potable water components includes potable water solenoid valves. These NS-Series NSF-certified valves from GC Valves are an excellent choice for food and beverage grade potable water applications.

Stainless steel or thermoplastic bodies and synthetic seating and sealing materials makes NS series valves suitable for use with a variety of liquids, oils and gases. Valve operation is normally closed and open when electrically energized. The valves can be mounted in any position and a spring-loaded plunger assures positive shutoff.

Three types of 2-port (2-way), 2-position NS series valves are available. NS201 and NS211 series are piloted diaphragm valves; NS201 series valves can also operate under zero pressure differential. NS201 and NS211 series valves have 316L stainless steel or Nylon 6 bodies and are ported for 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2 or 2-inch NPT. These valves are available with 120VAC, 24VAC or 24VDC solenoids.

NS301 series valves are direct acting with an armature that acts directly on the valve orifice to control fluid flow and does not require a minimum pressure to operate. These valves have 303 stainless steel bodies and 1/4 inch NPT ports. They are available with three orifice sizes and solenoid voltages of 120VAC, 24VAC or 24VDC. Cost-effective NS301 series valves are an excellent choice for potable water applications up to 400psi.

Learn more by visiting www.automationdirect.com/water-components.
