Industrial Pinch Valves

Compressed air or fluid compresses the rubber sleeve inside the valve body to shut off media flow.

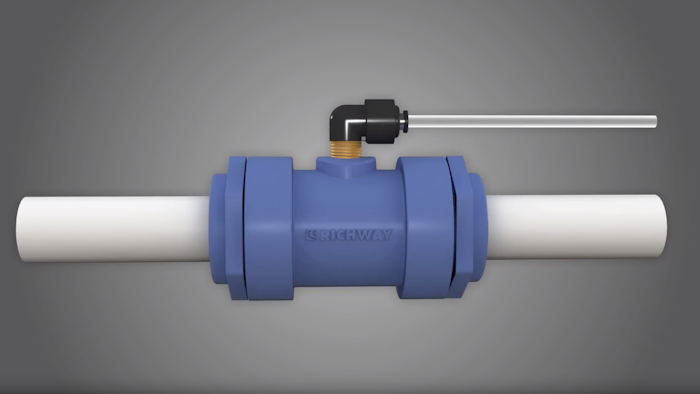

Screen Shot 2019 01 23 At 10 34 26 Am
Richway Industries (YouTube)
Screen Shot 2019 01 23 At 10 40 44 Am
Richway Industries

Richway’s Airpinch valves use compressed air, or fluid, to compress the rubber sleeve inside of the valve body to shut off media flow.

Operating pressures for controlled material vary depending on sleeve elastomer and valve size. They can range from a moderate vacuum (up to 26" Hg) to a maximum of 90 psi when controlling with air.

  • Regulator is used to set the actuation air pressure

  • Three-way solenoid controls the regulated air signal going to the valve.

  • Required actuation pressure is generally 20 to 40 psi greater than media pressure.

  • A quick exhaust valve not required for operation.

See more here.
