Linear Position Transducer

Ideal for use in areas where space is a premium.

Screen Shot 2019 04 01 At 10 28 26 Am
UniMeasure Inc.
426852 328793587167817 1563331612 N

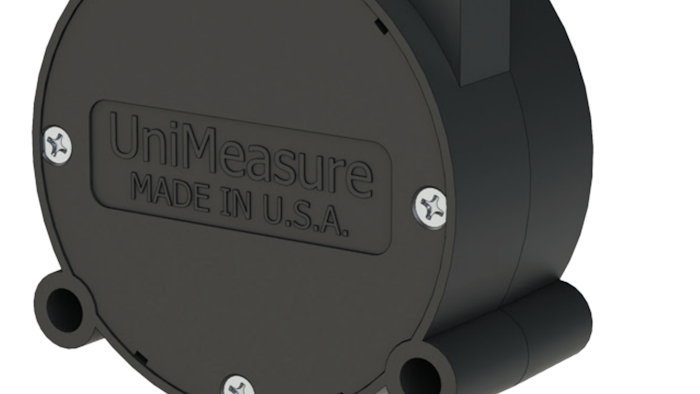

The FX-HM series linear position transducer from UniMeasure provides up to 15 inches of measurement range in a subcompact plastic package.

With a two point mounting system and a diameter of 1.5 inches, it is ideal for use in areas where space is a premium.

The device employs a non-contacting hall effect internal sensor which permits use in applications where a very high cycle life is required. With an excitation voltage requirement anywhere in the range of 4.9 to 30 volts and a very low current requirement, the unit may easily be battery powered or operated from most standard instrumentation power supplies.

Acceptable for use in measurement for:

  • Suspension travel

  • Throttle position

  • Machine mechanism monitoring

  • Many other applications with space restrictions

For more, visit http://www.unimeasure.com.
