High-Current Shielded Planar Choke Inductor

Highly customizable inductor targets automotive and embedded high-current, high power density DC/DC converters.

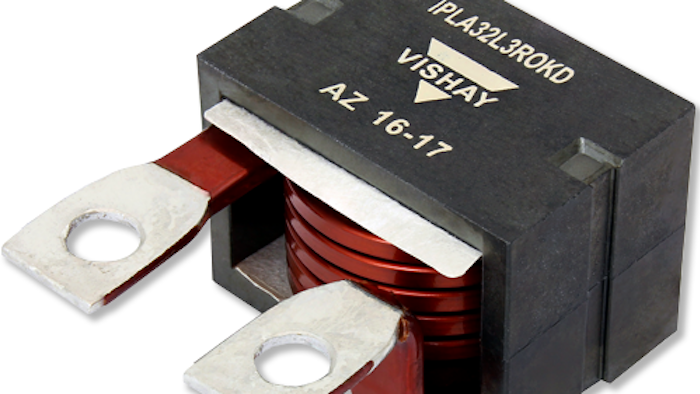

Vishay Ilpa32 Inductor
New Yorker Electronics
Nye
New Yorker Electronics Co.

New Yorker Electronics is now distributing the new Vishay Sfernice IPLA 32 High-Current Shielded Planar Choke Inductor.

This new device offers the same performance as wirewound devices in a fraction of the space. It measures just 31mm by 43mm by 22.2mm but is rated for currents up to 110A, allowing high power density DC/DC converters to occupy a significantly smaller footprint.

With a recommended frequency range of 100kHz to 800kHz, the IPLA 32 enables more compact and lightweight DC/DC circuitry in electric and hybrid cars, off-road vehicles including forklifts, and all manner of embedded systems.

Additional features include:

  • Very stable performances versus temperature

  • Low EMI, magnetically shielded

  • High self-resonance frequency

  • Recommended frequency range: 100 kHz; 800 kHz

  • Operating temperature range: -55°C; 125°C with heatsink dissipation

  • Flexible pin out design

  • Material temperature grade: 180°C

  • Custom design on request

  • Single-channel and dual-channel relays

For more, visit http://www.newyorkerelectronics.com.
