Position Sensor 3D Models

Ensure proper fit and seamless integration into a new or existing application.

3 D Medley No Back300
NewTek

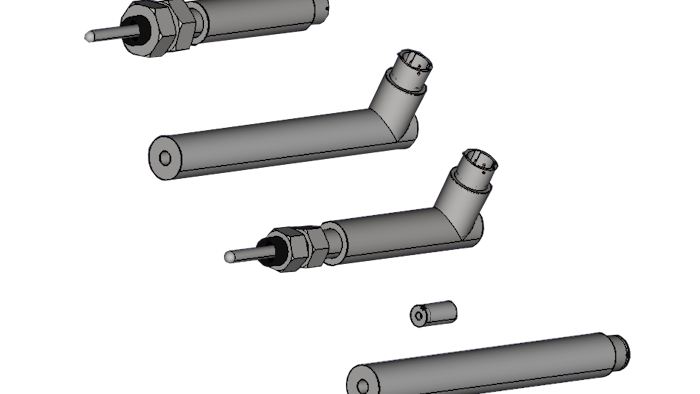

NewTek Sensor Solutions now offers an online 3D model library of its LVDT Position Sensors to ensure their proper fit and seamless integration into a new or existing application.

Offered in .stp and .igs formats for near-universal acceptance in CAD programs, the 3D models help OEMs and end-users visualize space requirements for position sensors to optimize layouts for different sensing systems.

The models also help engineers choose the right LVDT as replacements for existing sensors.

As the use of 3-models becomes more popular with systems and even plants depicted and designed in 3D CAD, designers can directly insert NewTek LVDT models into their digital systems prior to purchasing them.

NewTek offers 3D models for a range of its position sensors, including:

  • Miniature AC-operated LVDTs
  • High Temperature (200◦C) AC-LVDT
  • Hermetically-sealed Right Angle AC-LVDT
  • Spring-loaded AC-operated LVDTs

Check out NewTek’s online 3D model library of LVDT Position Sensors at https://www.newteksensors.com/3d-models/
