Faro Creaform

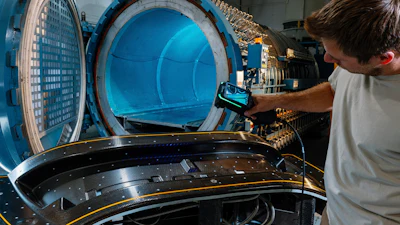

Faro Creaform (Lake Mary, FL), a business of AMETEK, Inc., introduced the HandySCAN 3D EVO Series for industrial dimensional metrology. The HandySCAN 3D EVO Series is designed for metrology-grade accuracy and advanced on-scanner visualization and can be used in automotive, manufacturing, metalworking and heavy equipment industries.
The HandySCAN 3D EVO Series provides a handheld 3D laser scanning and portable CMM solution for product development and quality control applications using accredited metrology accuracy standards.
Faro Creaform
Features:

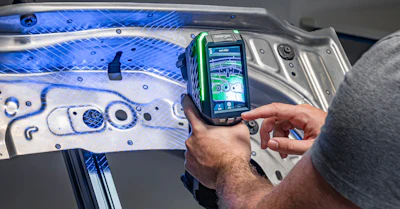

- Integrated 4.3-inch touchscreen display with embedded GUI for real-time visualization and direct access to parameters
- AR and photo documentation that incorporates high-resolution 12 MP camera to enable augmented reality capabilities and straightforward photographic documentation of inspection process
- High-precision blue laser technology that utilizes 46 blue laser lines (plus one extra) to deliver accuracy of 0.020 mm and volumetric accuracy of 0.020 mm + 0.015 mm/m
- Auto-alignment feature to streamline repetitive inspections and advanced scanning tools like high-resolution mode and clipping options
- Offers wireless capabilities through optional Mobility Kit and includes 350 mm scale bar
For more information, visit Faro Creaform's website.
